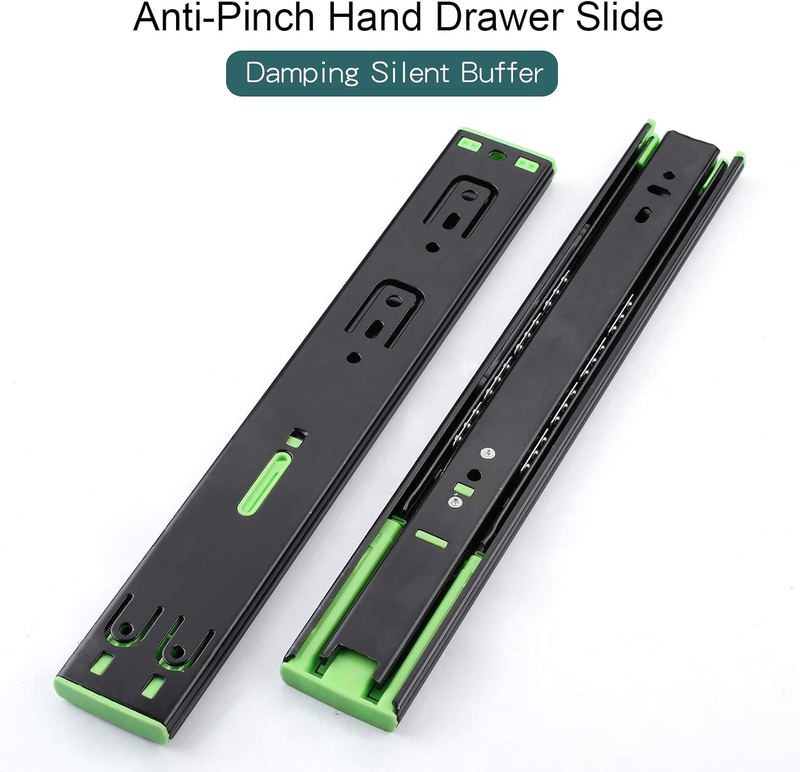

Full Extension Soft Close Drawer Slides

【Soft Closing Design】The drawer slides equipped hydraulic damper which allows the slides achieve soft close effect. Double spring design make less noise when close and open, create a warm and quiet family environment for you.

【Heavy Duty】Made from solid cold-rolled steel, galvanized surface prevent rust. The thickness of our material is 1.5mm. The load-bearing rated load up to 150 lbs.

【Full and Not Full Extension】Because of small size and built-in damping system, these 8" 10" 12" sliders are not full-extension. They extend about 2/3 of the slide length. However, the 14" 16" 18" 20" support the drawer slide full extension. Please choose the right size before you purchase our soft close drawer slides.

【Side-mounted】Making sure the drawer case sides are parallel and the drawer is exactly 1/2" on each side less than the drawer opening will ensure a good fit.

【Length】16 inch. Suitable for long drawer depths of 16-18 inches. (Please note that 8 pcs screws are Included.)

Product Description
Laigoo Soft Close Drawer Slides, Heavy Duty, Dual Springs with Ball Bearing
Soft Close
Hydraulic Soft/Self Close feature designed for preventing drawer from slamming shut.
Solid Ball Bearing
Provides smooth and friction-free motion when open drawer.
Double Spring Design
Makes it easier to pull back and smoother than single spring when bearing load.
3-Fold Slides
3-Fold Slides & Separable - Enable the slides to extend. The third slides can be separated. Installation Steps: Install the outer fixing rails on both sides horizontally and fix them with screws. When removing the drawer, press and hold the disassembly buckle to break away from the inner fixed rail. Install the inner fixed rails on both sides of the drawer, align the middle fixed rails, and slide them in parallel. Installation Space:
The space between drawer and cabinet wall need to be 1" (0.5" for each site) How to Choose Proper Size?
Measure the depth of the drawer ( for example, if the depth is 13in/330mm, choose 12in/300mm drawer slides. Deviations of 0.7in/20mm-1in/30mm are suitable)

Returns Accepted for this item if it's within 30 Days
